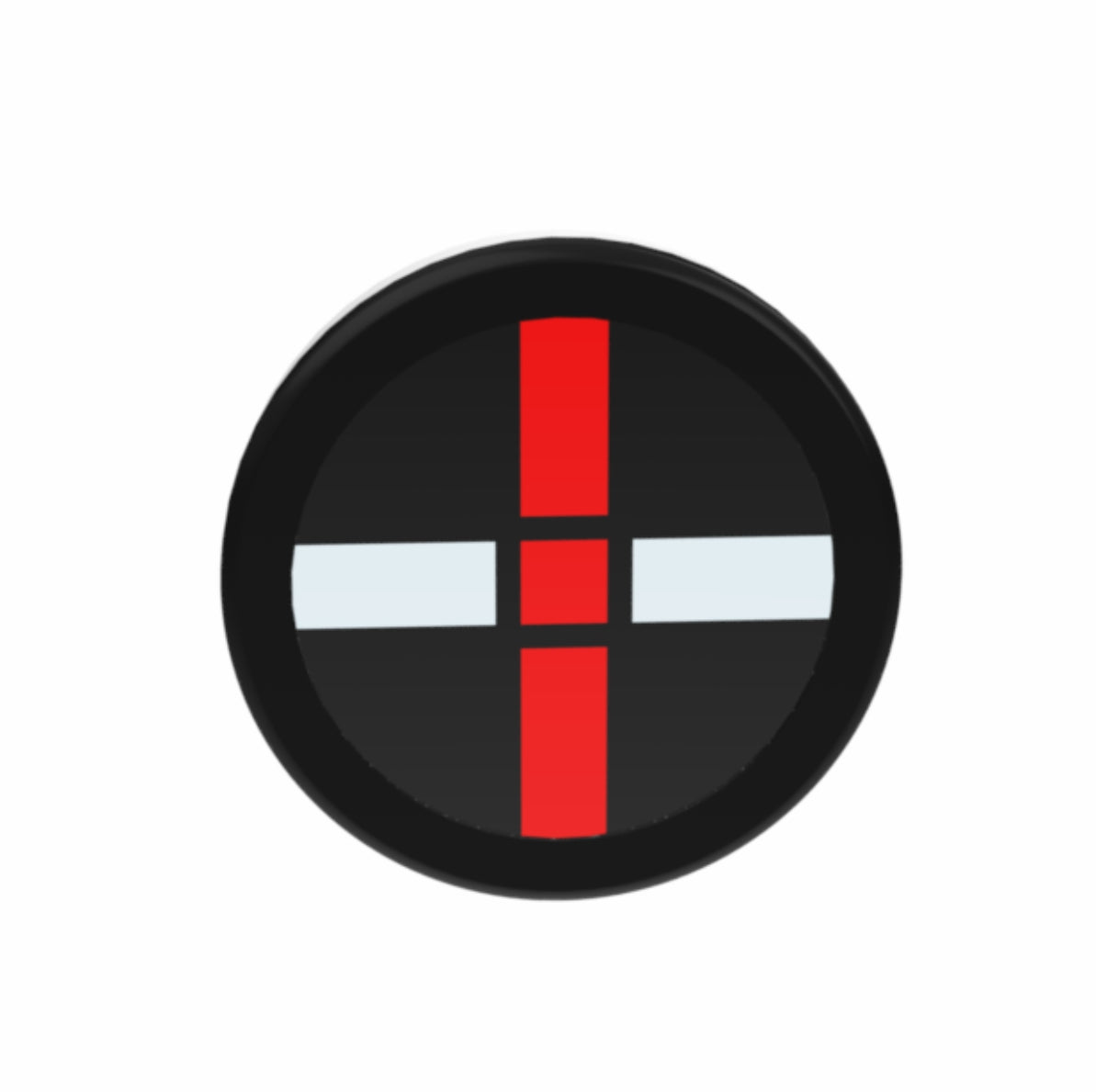

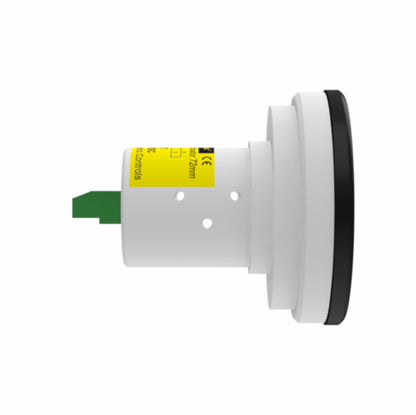

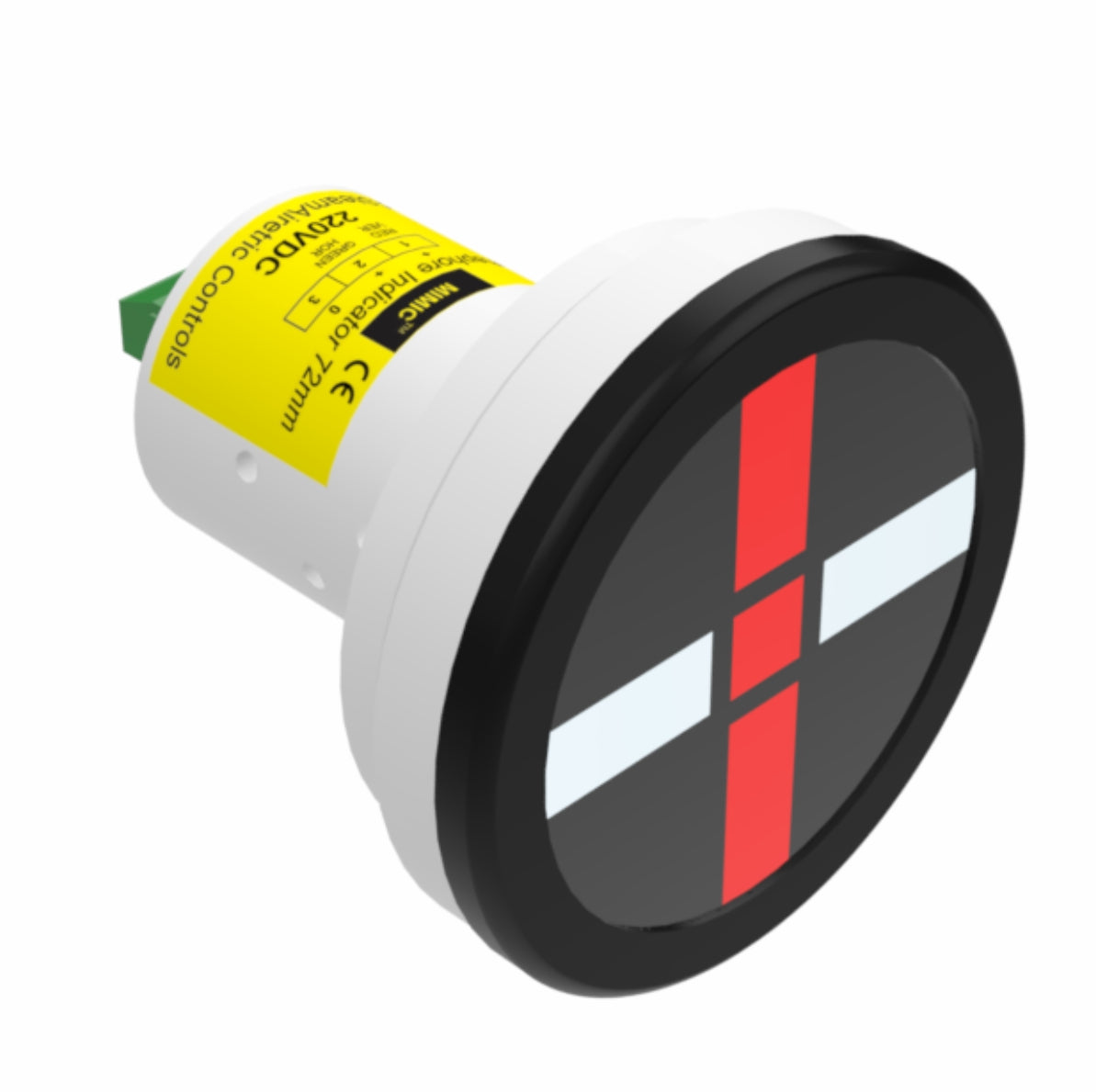

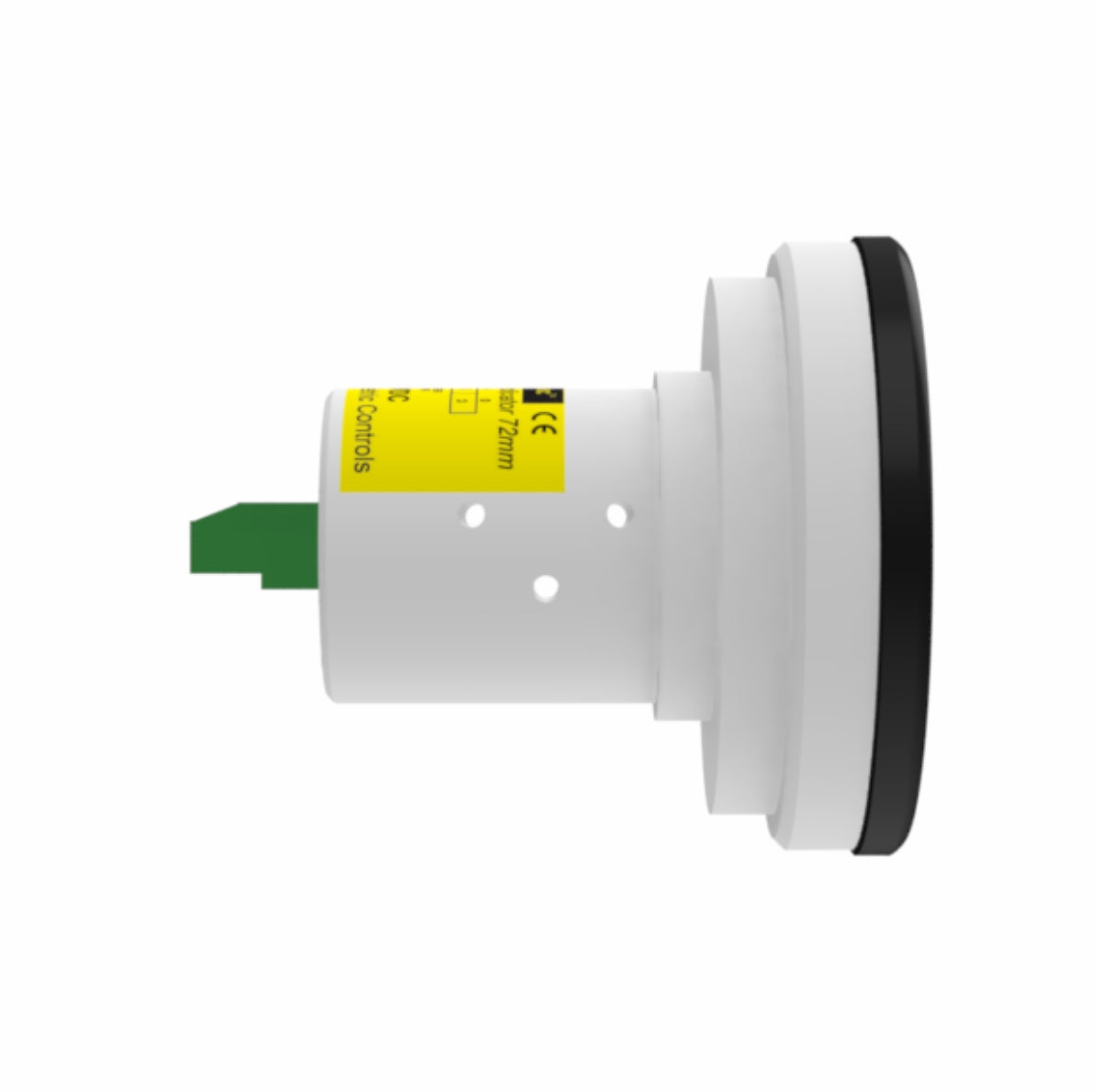

MIMIC LED Semaphore Indicator is used insituations which require visual simulationof the circuit or operating state of a device.Also used for indication of the fault positionor ON – OFF positions.Semaphore Indicator is particularly suitablefor monitoring power breakers & disconnectorsin complex transformers substations that arerepresented in form of mimic diagrams ofrelatively small dimensions.Applications : Automatic Status Indicationof Circuit Breakers, Isolators & Earth Switches.Also for MIMIC Diagrams of control panels.

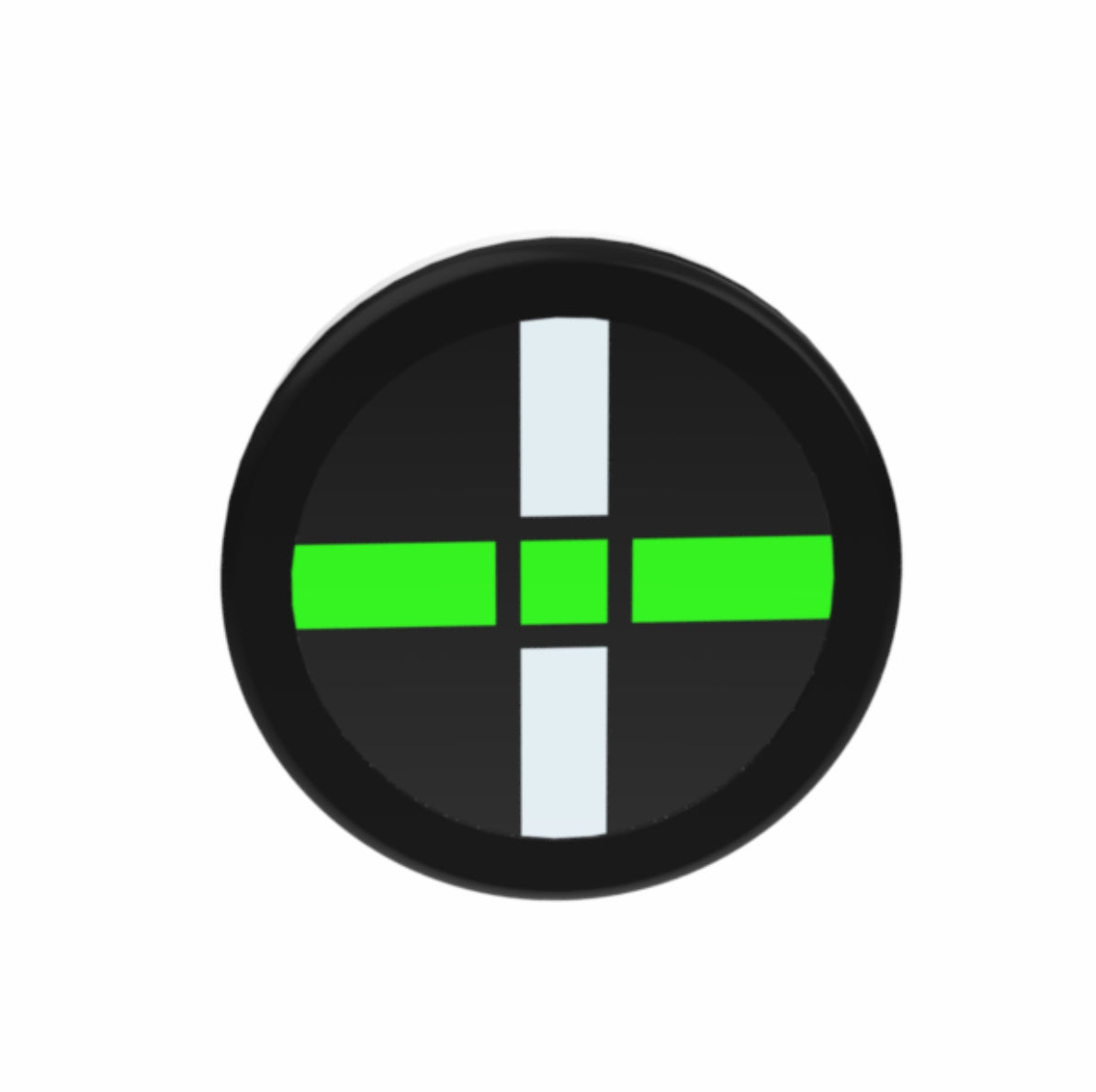

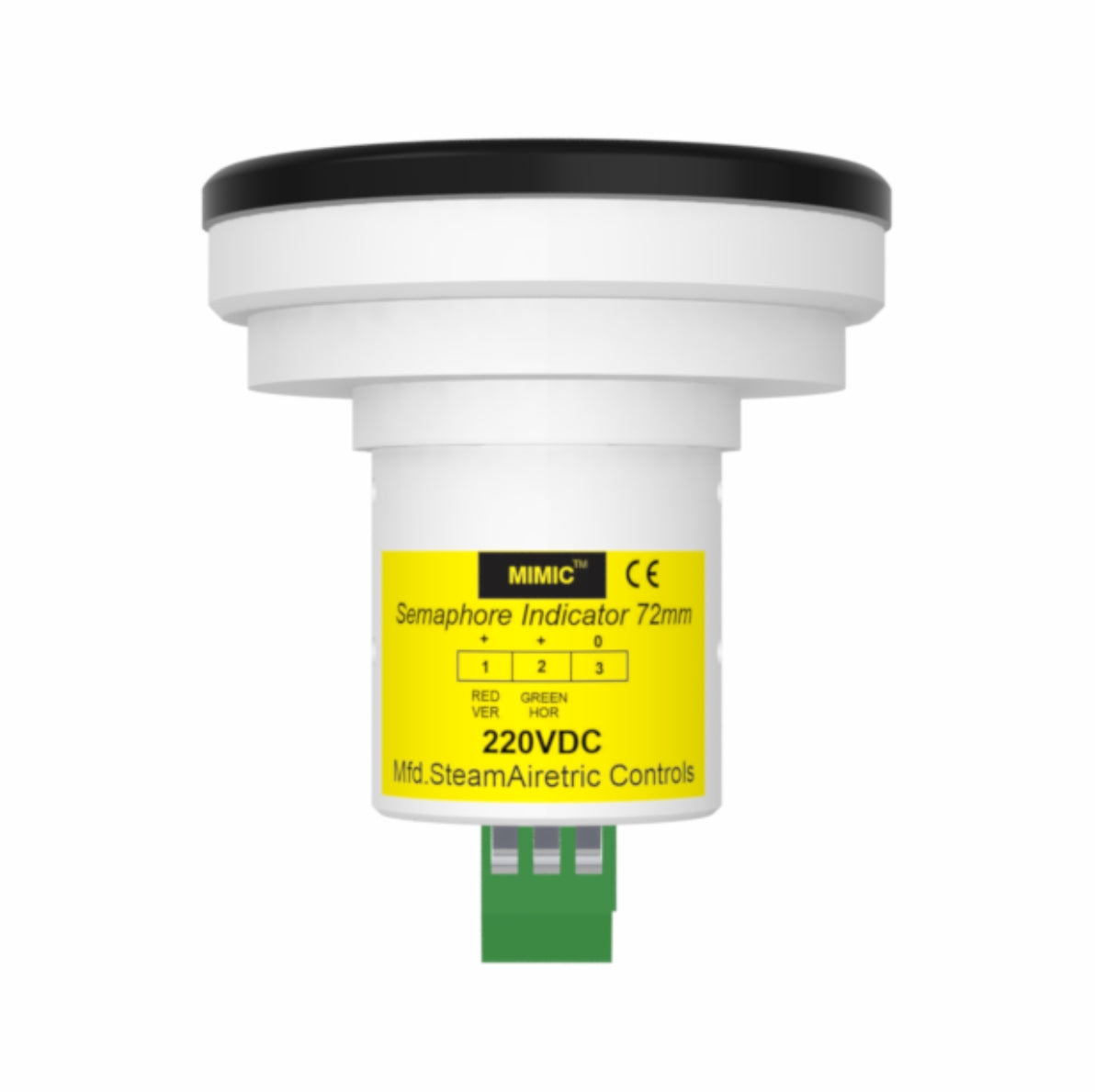

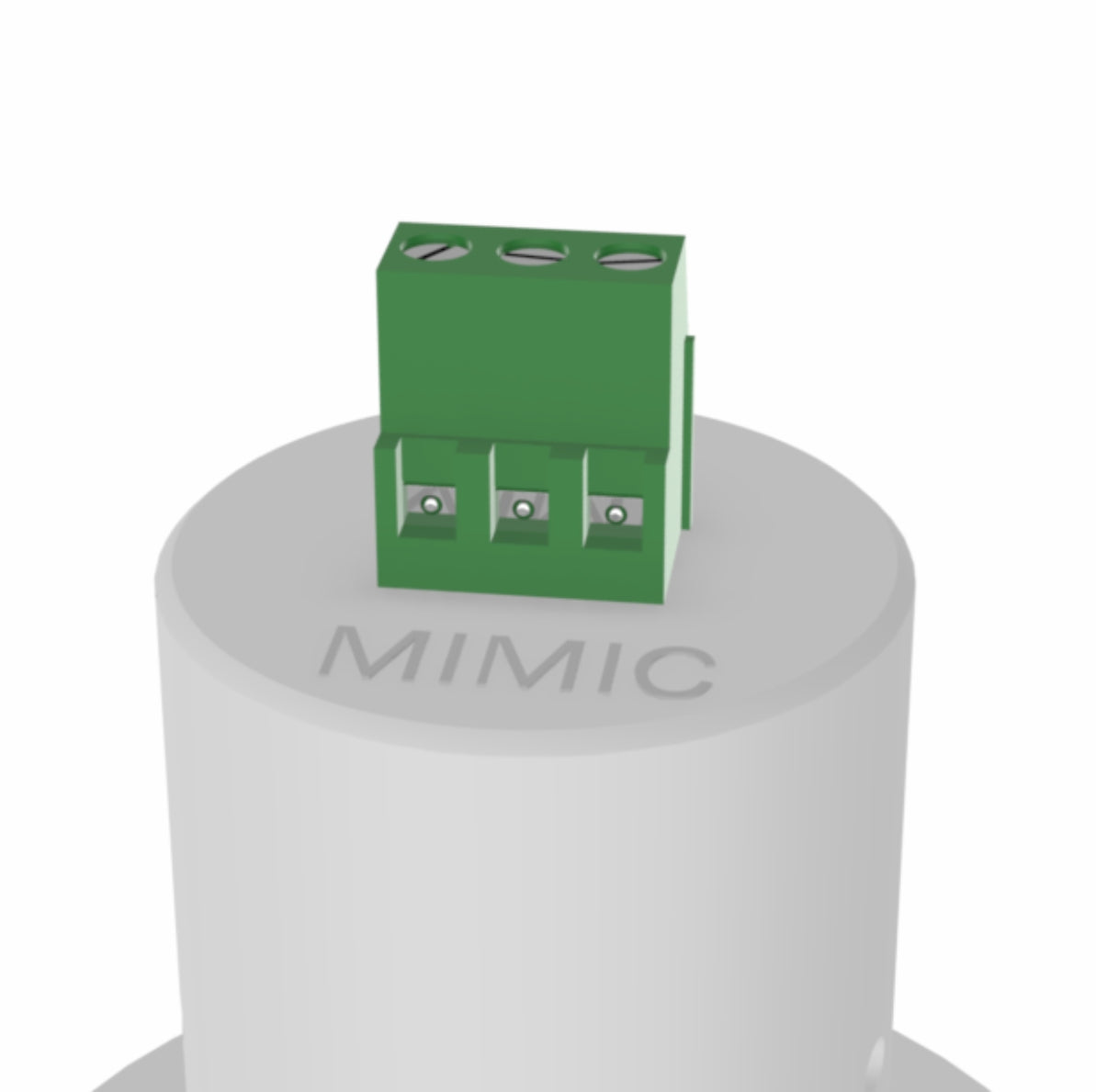

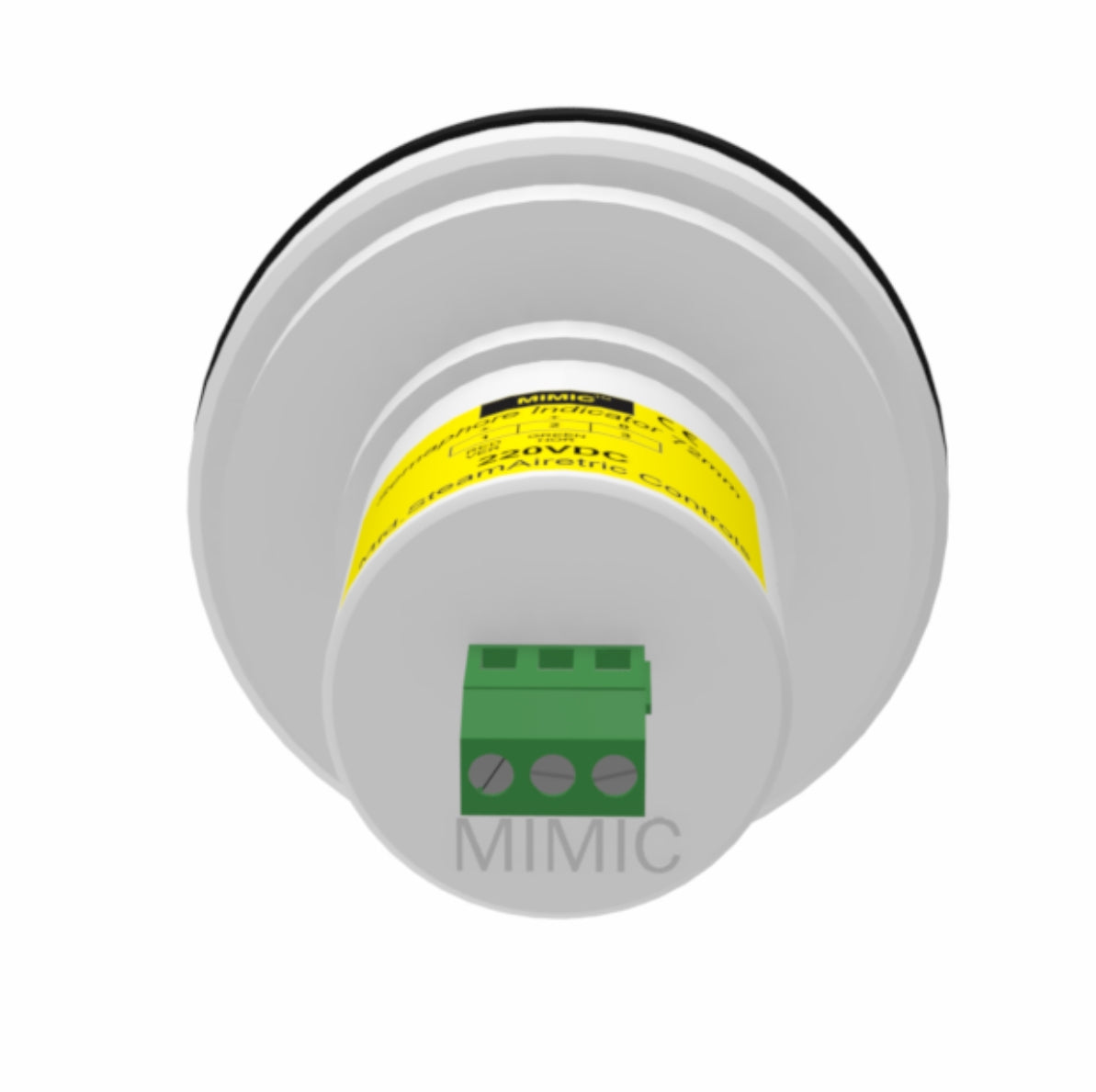

Specifications :- Rated Insulation Voltage (Ui) : AC, DC 250V. Rated Operational Voltage (Ui) : DC 24V, 30V, 48V, 110V, 220V. Voltage Fluctuation Range : ±15% Rated Operational Current (Ie) : 11 mAmax Insulation Resistance : 1000MΩ over Impulse Withstand Voltage : ± 4500V, 3 Times For EachPole (1.2/50µs) Shock Resistance : 490m/s² Durability : over 10000 Cycles Degree Of Protection : IP52 Operating Temperature : -20 to 60° C Storage Temperature : -30 to 75° C Relative Humidity : 45 to 85 % Altitude : Max 2000m Compatiable Copper Conductor : AWG 20 to 14 Mounting Plate Thickness : 1 to 6mm Confirming to Standard : IEC 60947-5-1, IEC 60947-1 Indication: vertical red , horizontal green Connection: 1-red,2-green,3-common
